ULTRASONIC CLEANING SOLUTION
REFURBISHED & RENTAL OPTIONS ARE AVAILABLE !!!
( subjected to availability...)
Ultrasonic cleaners function by producing sound waves that are transmitted into the tank and cleaning solution. These waves create millions of microscopic bubbles, which collapse or 'implode', releasing large amounts of energy, which scrub the surface clean. This process is called 'Cavitation'.
Our products are durable, industrial-grade precision cleaning equipment. We are committed to exceptional precision industrial ultrasonic cleaning. We focus to drive efficiency and innovation, yielding high quality, reliable state of the art performance -- bringing speed, agility and flexibility to every project.

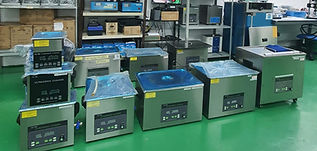

DESKTOP ULTRASONIC CLEANER
Desktop - Ultrasonic Cleaner
Desktop - Ultrasonic Cleaner
Features :
1.Welded cleaning tank made of 1.5mm SUS304 tank.
2.Drip-Proof housing made of SUS304, Acid-proof & Anti-corrosive.
3.Industrial grade transducers & generator, applicable for 8hrs continuous use.
4.Heavy-Duty, Multi-Directional castor wheels c/w brakes.
5.Variable Power Source, ranging from 1 to 100%.
6.Heating applicable continuously during cleaning process.
7.Inclusive SUS304 basket & take-off lid.
8.Insulated housing used to reduce sound transmission.
INDUSTRIAL ULTRASONIC CLEANER
Industrial ultrasonic cleaners come in several different types with various configurations and characteristics that are determined by the cleaning application. The size of the cleaning system, its power, its frequency and its controls all influence the system’s cleaning capabilities. The correct selection of cleaner is critical for the obtaining of the best and effective cleaning performance possible.
SUS Basket
Heavy Duty Castor
Water Outlet
Features :
1.Welded cleaning tank made of 1.5mm SUS304 tank.
2.Drip-Proof housing made of SUS304, Acid-proof & Anti-corrosive.
3.Industrial grade transducers & generator, applicable for 8hrs continuous use.
4.Heavy-Duty, Multi-Directional castor wheels c/w brakes.
5.Variable Power Source, ranging from 1 to 100%.
6.Heating applicable continuously during cleaning process.
7.Inclusive SUS304 basket & take-off lid.
8.Insulated housing used to reduce sound transmission.
CUSTOMISED ULTRASONIC CLEANER
Generator
Agitator System
(Up / Down)
Cleaner C/W
Drying Function
Submersible System
Agitation systems gently moves parts (up & down) through the nodes of increased energy that naturally forms within the ultrasonic bath. The consistent agitation of the parts enable the ultrasonic cavitation to reach blind holes and cavities. The agitation process also works to loosen debris and separate parts that may nest or sticking together. When integrated with our automatic ultrasonic washer, the agitation process also works to speed rinsing and drying. Operator involvement is minimized and parts processing efficiency is increased.
Hot Air Dryers reduces drying time without risking valuable parts. Once items emerge from an ultrasonic unit, they still must be dried quickly to maintain their pristine state. Faster drying means better results with less work. Rapid-drying process dramatically reduces overall drying time and prevents the accumulation of moisture, as well as the resulting spotting and corrosion. It also eliminates time-consuming hand drying, freeing up staff to work in other areas and increasing productivity.
Immersible ultrasonic transducers are sealed stainless-steel enclosures for adding ultrasonic cleaning capability to tanks and equipment for parts cleaning. Immersible ultrasonic transducers for cleaning can be added to either new or existing equipment. The ultrasonic transducer uses ultrasonic frequencies to cavitate the solution molecules in the tank and produce uniform precision parts cleaning of the part surface.
Transducers
Mainboards & Transducer Boards
Generator Internal Parts
Ultrasonic Cavitation Meter
